TRINNOV ALTITUDE Ci

TRINNOV ALTITUDE Ci, PRO VERSION

Scalable from 8 to 32 outputs in steps of 2, and up to 64 channels on request.*
*From 34 to 64 channels, the hardware upgrade of the processing unit (ref. UP-ALCI-EXP) must be added to your order. Contact us for the hardware upgrade process.

Licenses for 2 additional AltitudeCi optimization channels can be ordered via the link provided.

The immersive processor for your audiovisual installations

The reference TRINNOV technology platform.

• The best acoustic optimization and active acoustics algorithms: Optimizer™, WaveForming™, Remapping™.
• Architecture designed for audio-over-IP networks, for maximum interoperability.
• Ready for your working environment, with many integration options available.
• Suited to the existing technical environment. Scalable by nature.
• A single platform for configurations from 8 to 64 channels.
• Supports a wide range of input/output combinations to suit every system:
  • Up to 8 analog outputs
  • Up to 32 AES/EBU inputs/outputs
  • Up to 64 audio-over-IP inputs/outputs, with SFP ports compatible with copper and fiber infrastructures
  • Different types of inputs/outputs can be combined
  • HDMI 2.1 inputs/outputs for AV content
• Lets you offer exactly what each project needs, with no excess and no compromise.

Configurations for every venue

• ALCI 8: 5.1 / 7.1 surround configurations
• ALCI 12: 5.1.4 / 5.2.4 / 7.1.4 immersive configurations
• ALCI 16: 7.1.4 bi-amp / 7.2.4 / 7.4.4 / 9.1.6 configurations
• ALCI 20: 9.1.6 bi-amp / 9.2.6 / 9.4.6 / 11.1.8 configurations
• ALCI 24: 11.1.8 bi-amp / 11.2.8 / 11.4.8 configurations
• ALCI 32 / ALCI 48 / ALCI 64: DCI configurations, large auditoriums and research projects

One platform, from 8 to 64 channels. Start your investment gradually and choose only the channels you need. Upgrade at any time, remotely, through software licenses.

Audio over IP with maximum interoperability

• Dante(hardware implementation), to integrate with the widest range of audio-over-IP devices, up to 192 kHz.
• AES67(hardware implementation), interoperability with cinema servers, DCI amplifiers and Ravenna/AES67 equipment* (*Merging Technologies / Neumann). Up to 96 kHz.
• SMPTE ST 2110-30(hardware implementation). Compatible with broadcast audio environments. Up to 96 kHz.
• SFP ports compatible with 1G RJ45 copper transceivers and 1G LC fiber.

One processor. Three audio-over-IP technologies.

• DirectLink: dedicated, unmanaged AoIP network between AltitudeCi and amplifiers configured by default.
• Default configuration that isolates audio over IP from other network traffic (control and internet, for example) on 2 switched ports.
• Simplified architecture suited to Altitude + AoIP amplifier setups, without the need for managed networks that can be complex to deploy.
• This default configuration can be changed to fit your requirements.

3 network ports = flexibility in connectivity and configuration

• Port 1 has an RJ45 connector. Ports 2 and 3 have SFP cages compatible with 1G RJ45 copper and 1G LC fiber transceivers.
• Flexible configurations, from 3 switched ports to 3 isolated ports with audio-over-IP redundancy, including intermediate configurations.
• Discrete network On/Off commands to power the processor on and off remotely via the control network (out-of-band).

Hybrid output routing for maximum versatility

• Combine different output types: use analog, AES/EBU and Dante outputs simultaneously in the same system.
• Flexible output routing: each speaker channel can be routed to a different physical output type.
• Example configuration: AES/EBU outputs for the front speakers, analog for active subwoofers, and Dante for the surround/top speakers.
• The Optimizer corrects the different latencies. Timing and phase remain perfect.

Unlimited configurations / versatile inputs to connect all your sources

• Combine different inputs at once: consumer sources (Apple TV, consoles, Blu-ray, smart TVs) via HDMI, as well as a DCI server over AES/EBU and a Dante workstation.
• Instant recall: each source can be recalled immediately via the Trinnov App, the interface or, soon, the remote.
• Adapted playback: depending on the source, content can be played on some or all speakers, respecting the original format.
• Absolute versatility: different settings can be associated with each source recall.

A unique listening environment whatever the media

• A single listening system for all consumer, professional and cinema sources.
• A single speaker layout, with several possible configurations to suit the source content.
• Full control of the reproduction chain: easy comparison of different content in the same venue, without perceptual bias.
• Time saving: no need to travel to different venues to check how content translates.

Typical uses:

• DCP 5.1/7.1: 16 ch AES/EBU
• DCP Atmos: 32/64 ch AES67
• Broadcast: 32/64 ch ST 2110-30
• DAW Atmos: 32/64 ch Dante
• ATV/BR/PS5: Atmos via DD+ / TrueHD over HDMI
• Smart TV: Atmos via DD+ / HDMI eARC

One processor for all your content

• The Altitude can replace up to 3 existing pieces of equipment.
• Universal connectivity: whether analog, digital or over the network, the Altitude can connect to many amplifiers and speakers.

Consumer sources: all codecs with Trinnov performance

• Exclusive in-house implementation of the consumer decoders for Dolby Atmos®, DTS:X Pro®, Auro-3D® and IMAX Enhanced®.
• Decoding and upmixing up to the maximum layouts of the codecs (24.1.10 for Dolby Atmos), with total freedom in channel assignment.
• Spatialization, immersion and bass control exclusive to Trinnov: Optimizer™, WaveForming™, Remapping™.

New user-oriented interface

• Easy access: updates, configuration, calibration and results analysis in one place, via the Trinnov App.
• Faster results: the setup assistant shortens the learning curve, minimizes errors and allows a successful calibration in a short time.
• Detailed analysis: speaker positions, speaker and subwoofer response curves.
• Accessible settings: optimization parameters organized by theme for effective, personalized fine-tuning.
• Unified experience: identical user interface across all new-generation Trinnov processors (Nova, AltitudeCi).

Optimizer™ technology: improved speaker-room coupling

• Acoustic optimization: with a single measurement, the system automatically calculates consistent amplitude, phase and impulse responses across all speakers and subwoofers, as well as time and level alignment.
• Overall improvement in audio quality: precision in sound source localization, stability of the sound image, realism of immersion, better tonal balance and better integration between speakers and subwoofers.
• Flexible and versatile: adapts to all types and sizes of listening rooms.
• Exclusive 3D microphone: provides precise speaker location information, allowing sound sources to be virtually repositioned when the layout is not ideal.

Respect for listening standards: built-in target curves

• Standardized target curves: reference curves, such as the SMPTE ST 202 curve (X-Curve) or the Dolby Atmos Music curve, can be loaded instantly.
• Custom target-curve libraries: an unlimited number of target curves can be saved to suit all listening conditions.
• Target-curve versatility: front, surround and top speakers and subwoofers can each have different target curves.

Matrix bass management: adapts to all content

• Bass management matrix: the content of the different main channels can be redirected to any other speaker or subwoofer in the system.
• Optimized reconstruction at the crossover frequency: recalculated with every parameter change, to obtain the most accurate response possible at the crossover point.
• Different configurations to suit the nature of the content: bass management for the surround speakers only for DCI content, or for all speakers for consumer content.

WaveForming™ technology: absolute bass control

• Active acoustics device for low-frequency control: combined with the WaveForming algorithm, at least 4 ideally placed subwoofers can act as active bass traps.
• Substantial improvements in low-frequency decay-time control with less ringing. Better consistency across the listening area. The entire audible spectrum is transformed, with better intelligibility and micro-details revealed.

TRINNOV EXCLUSIVE: quality control of content exported in Dolby Atmos

• Instant comparison between a Dolby Atmos master and its MP4 export intended for consumers.
• Checking of the reduction in the number of objects, their movement and velocity, to ensure your immersive mixes translate properly.
• Exclusive tool, unique on the market, improving quality and efficiency.

Easy integration and control, without sacrificing performance

Integration and control:

• IP, RS-232, IR, triggers: a complete set of control interfaces.
• Trinnov App and web user interface: access from iOS, Android, macOS, Windows and Linux (web only).
• Native drivers: Crestron, Savant, Control4, RTI, etc.

The Remote:

• Assignable buttons: source selection, presets, volume recall, solo/mute.
• Rotary knob: precise volume control.
• LCD screen: configurable pages.

Support and services: at the service of customers

• Trinnov support: our engineers can securely access the processors (with the authorization of the dealer and/or end customer) to carry out advanced checks and diagnostics in case of a problem.
• No subscription fees: remote access is included with every processor.
• Extended warranty: all our processors are covered by a 5-year warranty.
• On-site calibration services: calibration carried out by an acoustic engineer, with hundreds of jobs done in residential, professional and cinema settings from 2 to 64 channels (optional, on quote).
• Support/maintenance contracts: periodic visits and priority support (optional, on quote).

Trinnov: designed and manufactured in France

A product aligned with CSR (corporate social responsibility) policies.

• Trinnov technologies and products are developed in France by our Research & Development team in our offices in the Paris region.
• Most of the parts and electronic boards specific to Trinnov processors are manufactured in France.
• The audio processors are assembled in one of our partner factories in the Paris region, Brittany and Touraine.
• Our technical support and after-sales service are handled in-house, in our offices, by Trinnov employees.

---

TECHNICAL INFORMATION

Audio processing

• Number of channels: 8 to 64 outputs
• Architecture: software-based, 64-bit floating-point processing
• Sample rate: up to 192 kHz (depending on number of channels)

Immersive audio formats

• Supported formats: Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced
• Upmixers: Dolby Surround, DTS Neural:X, Auro-Matic
• Full decoding: all channels and audio objects supported

HDMI connectivity

• Inputs/outputs: 4 inputs, 2 outputs
• Version: HDMI 2.1 with HDCP 2.3
• Max bandwidth: 40 Gbps on all I/O
• 8K support: up to 8K60 with 4:2:0 chroma
• 4K support: up to 4K120 with full 4:4:4 chroma
• Chroma subsampling: 4:4:4, 4:2:2, 4:2:0 (depending on format)
• HDR compatibility: HDR10, HDR10+, Dolby Vision, HLG
• Gaming features: VRR, FRL, ALLM
• Other features: OSD, full pass-through, ARC/eARC

Audio inputs

• Dante: up to 32 input channels
• AES/EBU: up to 32 inputs via 2x DB25
• S/PDIF: 1x coaxial + 1x optical input
• 3D microphone: 1x Ethercon input (supplies power)
• Independence: all inputs are independent
• Up to 64 AoIP inputs

Audio outputs

• Dante: up to 32 output channels
• AES/EBU: up to 32 outputs via 2x DB25
• Analog: 8x balanced outputs via 1x DB25
• Analog output level: +18 dBu max
• THD+N (analog output): 110 dB (1 kHz @ 0 dBFS, 20 kHz BW)
• Dynamic range (analog output): 115 dB A-weighted (ref. +18 dBu)
• Channel assignment: any channel to any physical output
• Output types: analog, digital or network outputs supported

Network and AoIP architecture

• AoIP support: native Dante (hardware) and Ravenna/AES67 (software)
• Compatibility with Dolby servers: via AES67
• Ethernet ports: 3 Gigabit ports, 2 of which have SFP cages
• SFP module: 1 RJ45 module included
• Network modes: switched, isolated or redundant
• AoIP simplification: DirectLink supported with Amplitude16

Control and integration

• Full interface access: macOS/Windows application or web interface
• Mobile remote control: iOS & Android app
• Available drivers: Crestron, Control4, Savant, RTI, AMX, Nice, AVA
• Physical control: IR input (3.5 mm jack, IR receiver included), RS-232
• Triggers: 1 input, 4 programmable outputs
• IR remote: optional
• Remote management: partner access via my.trinnov.audio

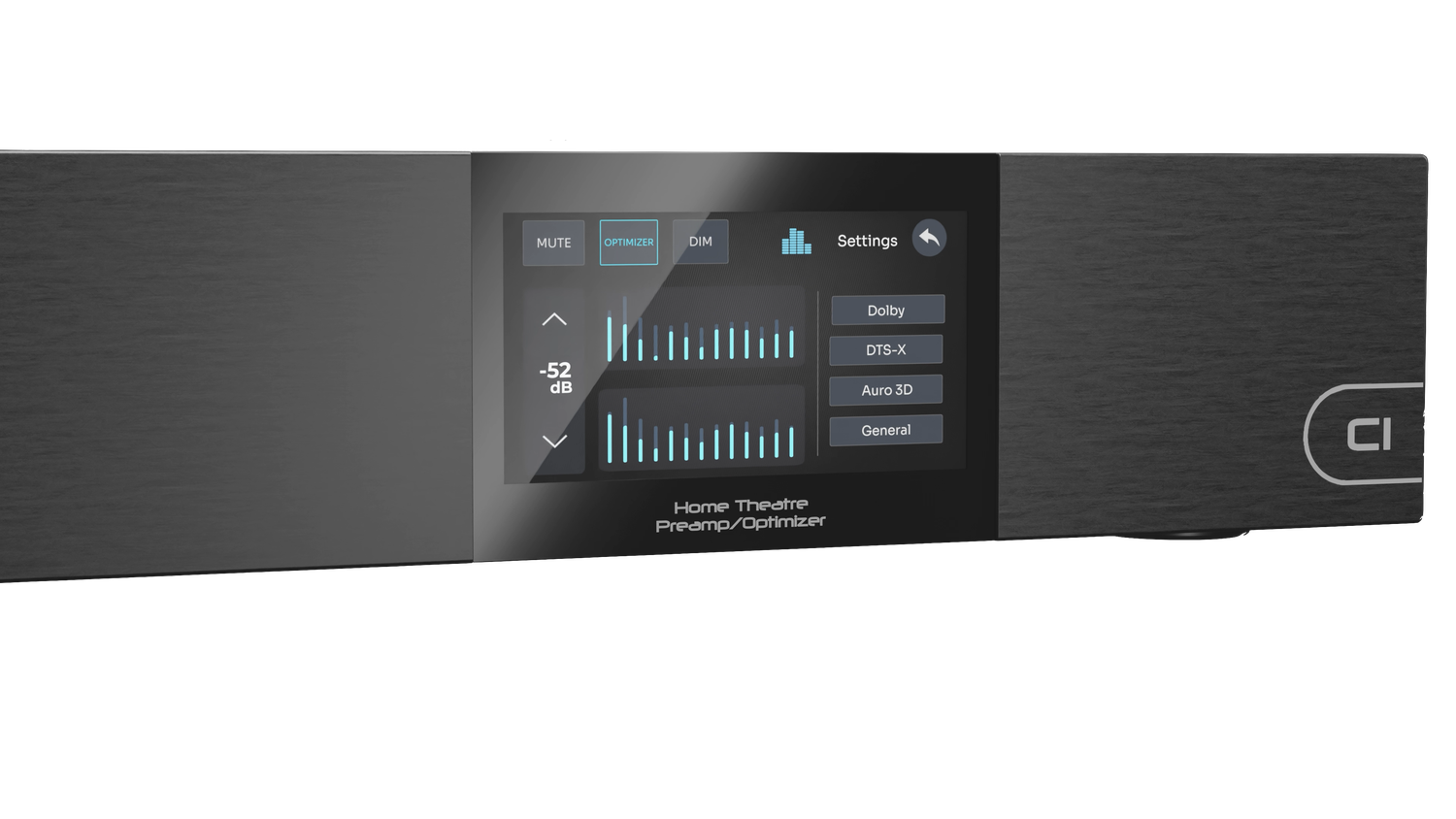

• Front panel: 5-inch touchscreen
• Power modes: standby and fast startup

Digital acoustic optimization

• Trinnov technologies: Optimizer, WaveForming, Remapping
• Calibration process: guided step-by-step setup
• 3D microphone integration: automatic download of the microphone file

Audio streaming

• Roon: certified Roon Ready endpoint
• Audirvāna: plays with Audirvāna
• UPnP: FLAC, WAV, MP3, OGG

Power and thermal

• Power supply: 100-240 V auto-switching
• Max consumption: 140 W (0.5 W in standby)
• Cooling: temperature-controlled fans
• Heat dissipation: 480 BTU/hr (max load)
• Power fuse: 2x T800 mA

Chassis and dimensions

• Format: 2U rack-mountable
• Net weight: 8.6 kg / 19 lbs
• Front panel: smoked-glass touchscreen in brushed aluminum
• Design: minimalist, rack-friendly, with removable ears/feet
• W x H x D (without ears/feet): 438 x 88 x 371 mm / 17.24 x 3.46 x 14.61 in
• W x H x D (with ears/feet): 482 x 97 x 371 mm / 18.98 x 3.82 x 14.61 in
• 5-year warranty

Options

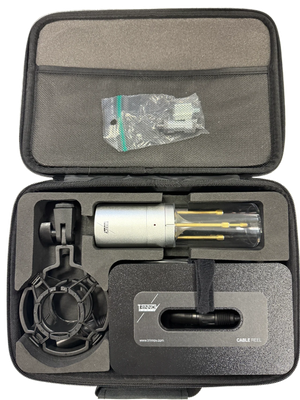

• Trinnov 3D Microphone with ETH connector for AltitudeCI
• RJ45 SFP module
• Fiber SFP module
• Optional IR remote for AltitudeCI
• Licenses for 2 additional optimization channels

Manufacturer information
Trinnov Audio, 5 rue Edmond Michelet, 93360 Neuilly-Plaisance, France
