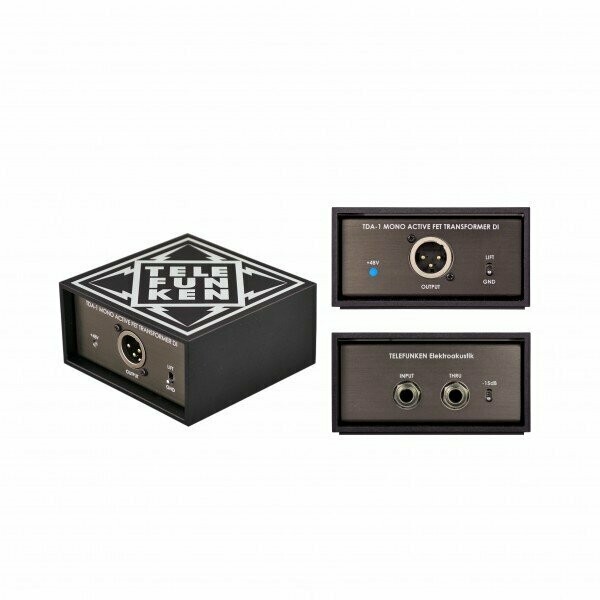

TELEFUNKEN TD A - 1

Telefunken Active mono DI

Telefunken boîte direct active mono, Garantie 3 ans
Rugged aluminum construction
Class-A discrete FET circuitry
+48V phantom powered with LED indicator
-15 dB pad switch
Ground lift switch
100% through-hole components
Amphenol connectors
WIMA, Nichicon, and Panasonic capacitors
1% 1/4W metal film resistors

Channels 1
Transformer Custom-Wound OEP/Carnhill Transformer
Frequency Range 20 Hz - 70 kHz, ± 2 dB
Noise -116 dBV (unweighted)
Input Impedance 1 MΩ
Output Impedance < 100Ω
Power Requirement +48 VDC Phantom Power
Current Draw 3.8 mA
Weight 459 g (1.01 lb)
Dimensions 100 mm L x 100 mm W x 50 mm H
Max Input +1 dBV (no pad), +17 dBV (with pad)
Input Connection 1/4" Jack
Output Connection XLR Output, 1/4" Thru
