Type

Pressure Gradient Condenser

Capsule

TK62 - 15 mm Edge Terminated Diaphragm

Tube Type

Active FET Transistor (No Vacuum Tube)

Transformer

Custom Wound Telefunken T61CT

Polar Pattern

Hyper-Cardioid

Frequency Range

20 Hz - 31.5 kHz, ± 2 dB (Amplifier)

Sensitivity

8.6 mV/PA, ± 1db

THD at 1kHz at 1Pa (Amplifier)

< 0.01%

Output Impedance

120 Ω

Maximum SPL (for 1% THD)

> 130 dB

S/N Ratio

> 89 dBA

Self Noise (Amplifier)

≤ 5 dBA

Dimensions / Size

140 mm L x 21 mm Dia

Weight

110 g

Current Draw from Mains

2 mA

Cable

SGMC-5R - 5 Meter (16.9 ft) Cable, Right Angle Female 3 Pin XLR, 3 Pin Male XLR

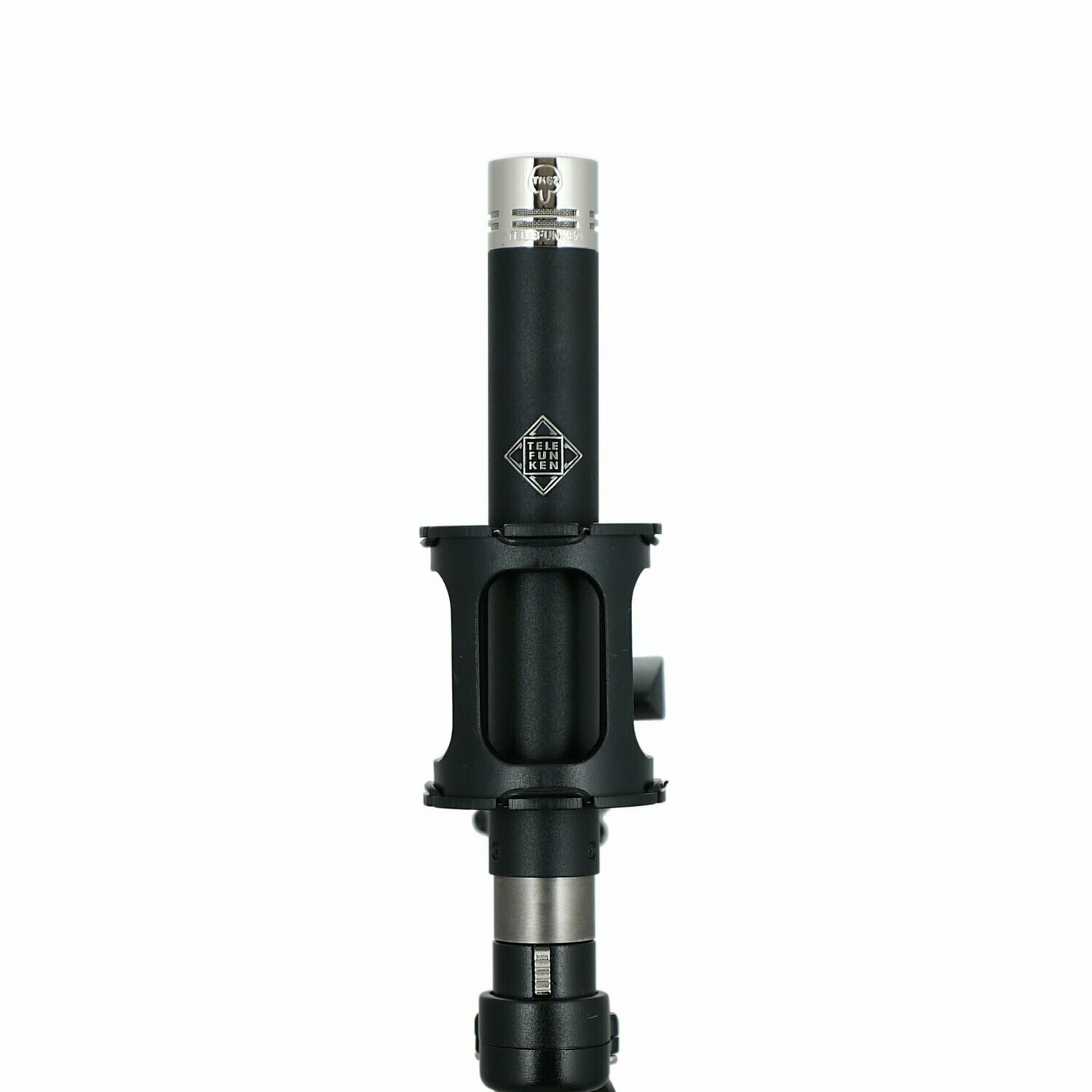

Shockmount

M 961 - Suspended Elastic Mount

Flight Case

ZC61 Soft Foam Zip Case, ZC62 for Stereo Set
