SPL PRE ONE
SKU 1907
€594.01
Price incl.
VAT (19%)
€94.84
1
Product Details
UPC:
4260149322456
Marque:
SPLAUDIO

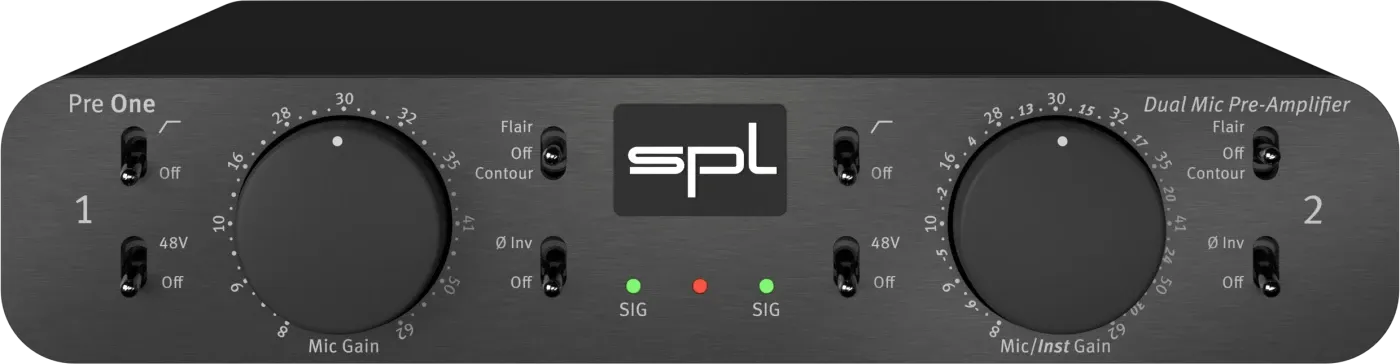

SPL AUDIO PRE ONE
Préampli micro deux canaux à composants discrets.
Analog inputs & outputs; XLR & Jack (balanced)
Maximum Input level (Mic, Gain +8 dB) +13.5
dBu
Maximum Input level (Instrument, Gain -6 dB) +23.5
dBu
Input impedance (Mic) 10
kΩ
Input impedance (Inst) 1.1
MΩ
Output impedance 75
Ω
Frequency range (30 dB Gain) 10 Hz–200
kHz
THD+N (Mic, 30 dB Gain) 0.0028
%
THD+N (Mic, 50 dB Gain) 0.014
%
THD+N (Mic, 62 dB Gain) 0.017
%
THD+N (Instrument, 0 dB Gain) 0.0039
%
Equivalent Input Noise (EIN) 126
dBu
Dynamic range 117
dB
Noise (Mic, A-weighted, 150 Ω load, 30 dB Gain) -95
dBu
Noise (Mic, A-weighted, 150 Ω load, 50 dB Gain) -77
dBu
Noise (Mic, A-weighted, 150 Ω load, 62 dB Gain) -68
dBu
(CMMR) Common mode rejection Mic Input >75
dB
Internal Power Supply
Operating voltage for analog audio +/- 17
V
Operating voltage for relays and LEDs +12
V
Phantom power +48
V
Power consumption 7,0 VA
VA
External Power Supply
AC/DC switching adapter Mean Well GE18/12-SC
DC plug
Innen-Pin 2,1mm (+); Außen-Ring 5,5mm (-)
Input 100 - 240 V AC; 50 - 60 Hz; 0.7
A
Output 12 V DC; 1.5
A
Dimensions & Weight
W x H x D (width x height incl. feet x depth)
210 x 49.6 x 220
mm
8.23 x 1.95 x 8.66
inch
Unit weight
1.45
kg
3.2
lbs
Shipping weight (incl. packaging)
2
kg
4.4
lbs
Reference: 0 dBu = 0.775V. All specifications are subject to change without notice.
